Ron 1000 Standard Overload Detector with One Adjustable Detection Point

Full range	0.5
Resolution	0.2
Load Cell weight	0.3
Cable length	5
H1 (max.)	125
H2 (max.)	92
B (max.)	16
Ø D1 (max.)	318
Ø D2 (min.)	17
Matching anchor shackle size*	½ 7/16 3/8

Use shackles with S.W.L. (Safe Working Load) equal to or greater than system's full range. The company reserves the right to make changes without notice.

Product Description
Key Features

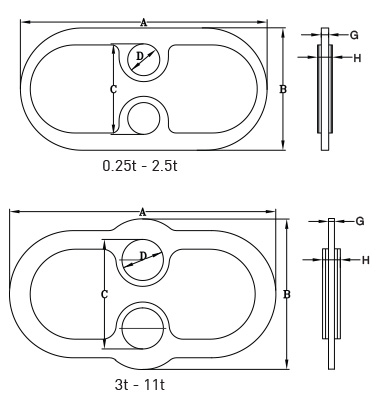

Dimensions
Operator's Manual
Specifications

Capacity
catalog #	ton
S-002	0.25
S-005	0.5
S-007	0.75
S-008	0.8
S-01	1
S-012	1.25
S-015	1.5
S-016	1.6
S-02	2
S-025	2.5
S-03	3
S-032	3.2
S-04	4
S-05	5
S-06	6
S-07	7
S-08	8
S-09	9
S-10	10
S-11	11

G Max
catalog #	mm.	inch
S-002	5	0.2
S-005	5	0.2
S-007	7	0.3
S-008	7	0.3
S-01	7	0.3
S-012	7	0.3
S-015	9	0.4
S-016	9	0.4
S-02	9	0.4
S-025	9	0.4
S-03	5	0.2
S-032	5	0.2
S-04	7	0.3
S-05	7	0.3
S-06	9	0.4
S-07	11	0.5
S-08	11	0.5
S-09	13	0.6
S-10	13	0.6
S-11	15	0.7

H Max
catalog #	mm.	inch
S-002	33	1.3
S-005	33	1.3
S-007	35	1.4
S-008	35	1.4
S-01	35	1.4
S-012	35	1.4
S-015	37	1.5
S-016	37	1.5
S-02	37	1.5
S-025	37	1.5
S-03	33	1.3
S-032	33	1.3
S-04	35	1.4
S-05	35	1.4
S-06	37	1.5
S-07	39	1.6
S-08	39	1.6
S-09	41	1.7
S-10	41	1.7
S-11	43	1.8

Ron 1000 Standard Overload Detector with One Adjustable Detection Point
